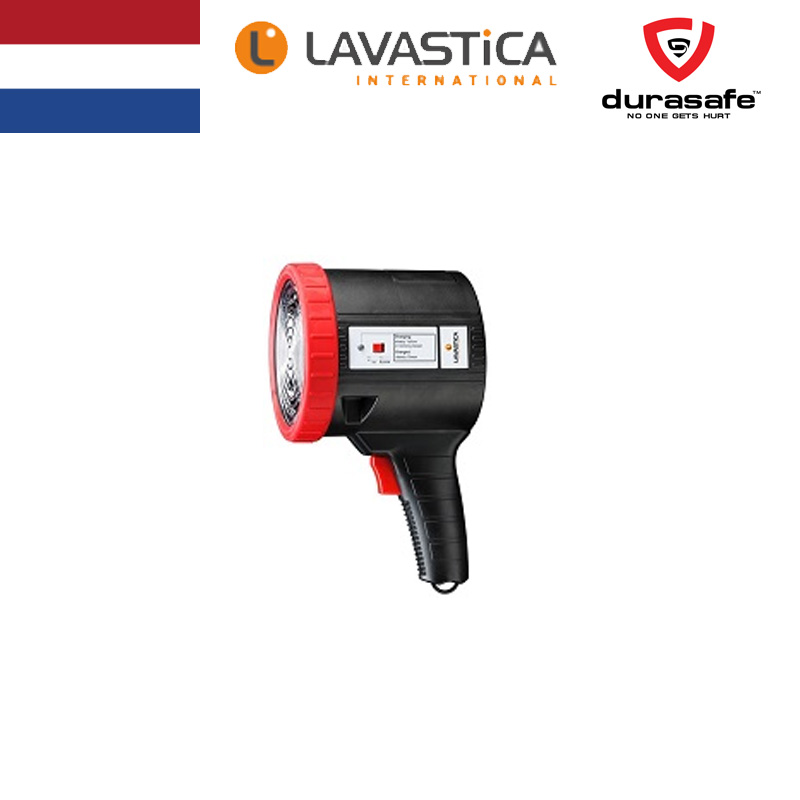

LAVASTICA INTERNATIONAL LAV-FT-02 Flame Detector Test Lamp

The Lavastica LAV-FT-02 Flame Detector Test Lamp activates UV, IR and UV/IR Flame Detectors which detect in the 185-235 nm UV and 4.4 μ IR frequency ranges. For UV only detectors the maximum distance is up to 8 meters (26 ft) in the continuous mode. The test range for IR and UV/IR Detectors is up to 4 meters (13 ft). Most IR Flame Detectors have an extra alarm criterion; analyzing the flicker frequency of a fire.

The Test Lamp LAV-FT-02 can be put into the pulse mode by means of a selection switch on the left side of the Test Lamp. The lamp then emits pulsed energy with a frequency of approx. 2 Hz. After the alarm delay time the IR or UV/IR Flame Detector will activate.

  • Another look and feel with a red trigger and a red rubber cuff
  • The indicator/status LED in a green/yellow two-color LED, while the status LED in the previous model was red
  • In the previous model, the lid of the battery compartment was a rather weak point, so now a more robust lid of the battery compartment is designed
  • The new model has an improved charging circuit, which makes this Flame Detector Test Lamp comply with legislation that will soon apply in North America and Europe.



Test range UV Flame Detectors: up to 8 m (26 ft) in continuous mode,
up to 4 m (13 ft) in pulse mode
Test range IR and UV/IR Flame Detectors: up to 4 m (13 ft)
Use: 10-15 minutes under optimal conditions
and continuous use
Housing material: ABS/PC
Dimensions: 160 x 140 x 260 mm (6.5 x 5.5 x 10 “)
Weight: 0.65 kg (1.4 lbs)
Test Lamp with Lamp, Battery and Charger,
shipping dimensions/weight (box):
310 x 220 x 210 mm (12.5 x 9 x 8.5 “);
2.1 kg (4.5 lbs)
Ingress Protection: IP30
Temperature range: +4 to +40°C/+39 to +104°F
